8910

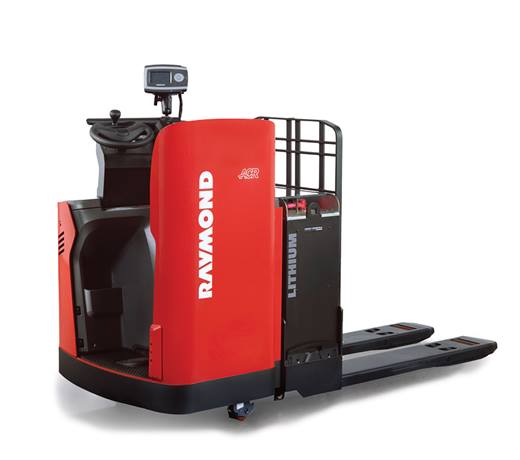

End Rider Pallet Jack
Move Comfortably Over Longer Distances
Ideal for long hauls and congested work areas, the Raymond 8910 features a roomy, operator compartment for enhanced comfort and security. The pallet truck features intuitive, easy-to-use controls, and offers exceptional maneuverability with low-effort electric steering and electronic braking.
- Battery: 24 volt
- Capacity: 6,000 lbs. or 8,000 lbs.
- Fork Length: Available in multiple fork lengths and widths
- Loaded Travel Speed: 6.5 mph and 6.2 mph
- Unloaded Travel Speed: 9 mph
Features
Durability
- Lift and Go programmability
Prevent unnecessary wear to the undercarriage by training operators to travel with forks elevated with programmable travel speed control
- Durable Drive Motor
Rugged drive motor provides performance in any application without any added weight to slow down operations
- Heavy duty undercarriage
Steel-reinforced undercarriage with heavy-duty pins and bushings combined with internally strengthened forks and 50% thicker skid bars to handle maximum workloads
Eco performance
- Battery Discharge Indicator
Prevent damage to the motor’s electrical components caused by over-discharging the battery
- Efficient by Design
All components calibrated for peak performance
- ACR System
Quick and efficient AC traction and smooth responsive control means fewer battery changes and fewer moving parts
Ergonomics
- PowerSteer
Increase operator comfort by reducing the effort required to maneuver the truck
- Shift-long Comfort
Low height and roomy platform and multiple lean points allow postural relief to operators.
Maintainability
- Stainless Pins
Extend overall life of bushings and undercarriage assembly
- Heavy-Duty components
Every component from stainless steel pins and composite bushings to strong tail fork castings and tough casters, is engineered to handle the heaviest loads.
- Drive Tire Access
Change out drive tire in just minutes
Productivity
- Smooth Pallet Entry
Forks are tapered from side to side and top to bottom to allow smother transition, along with a streamlined fork thickness for better clearance
- More Uptime with ACR
ACR system delivers smooth control and quick acceleration
